Viewing Data

To view data that has already been loaded into BIMS, you first need to select a crop if the community database has data for multiple crops and then choose the breeding program.

_images/ViewingData1.png

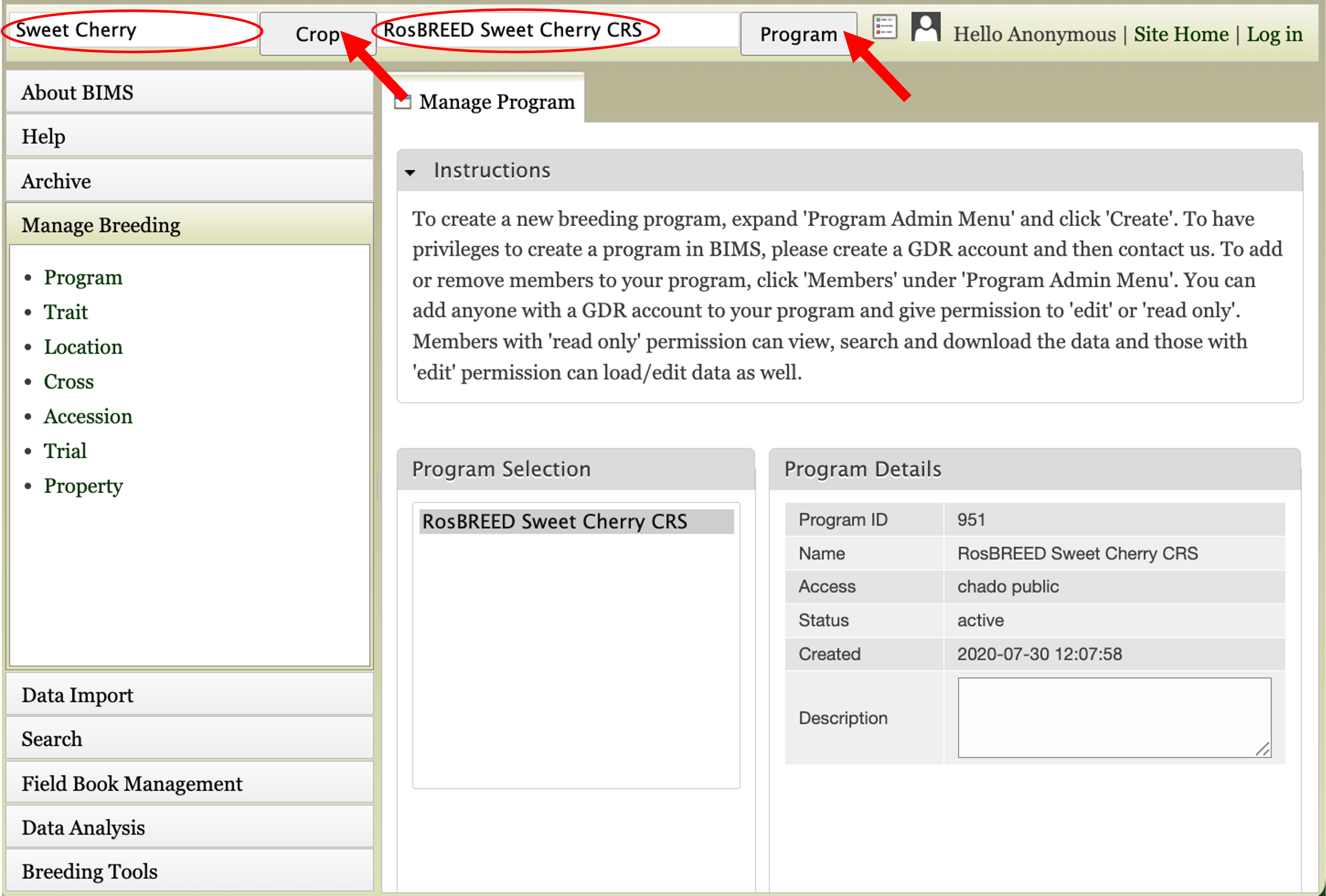

Once the selections have been made, the selected crop and program names will appear in the upper left corner of the BIMS window. You can change the crop or program by clicking on the buttons in the upper left corner.

_images/ViewingData2.png

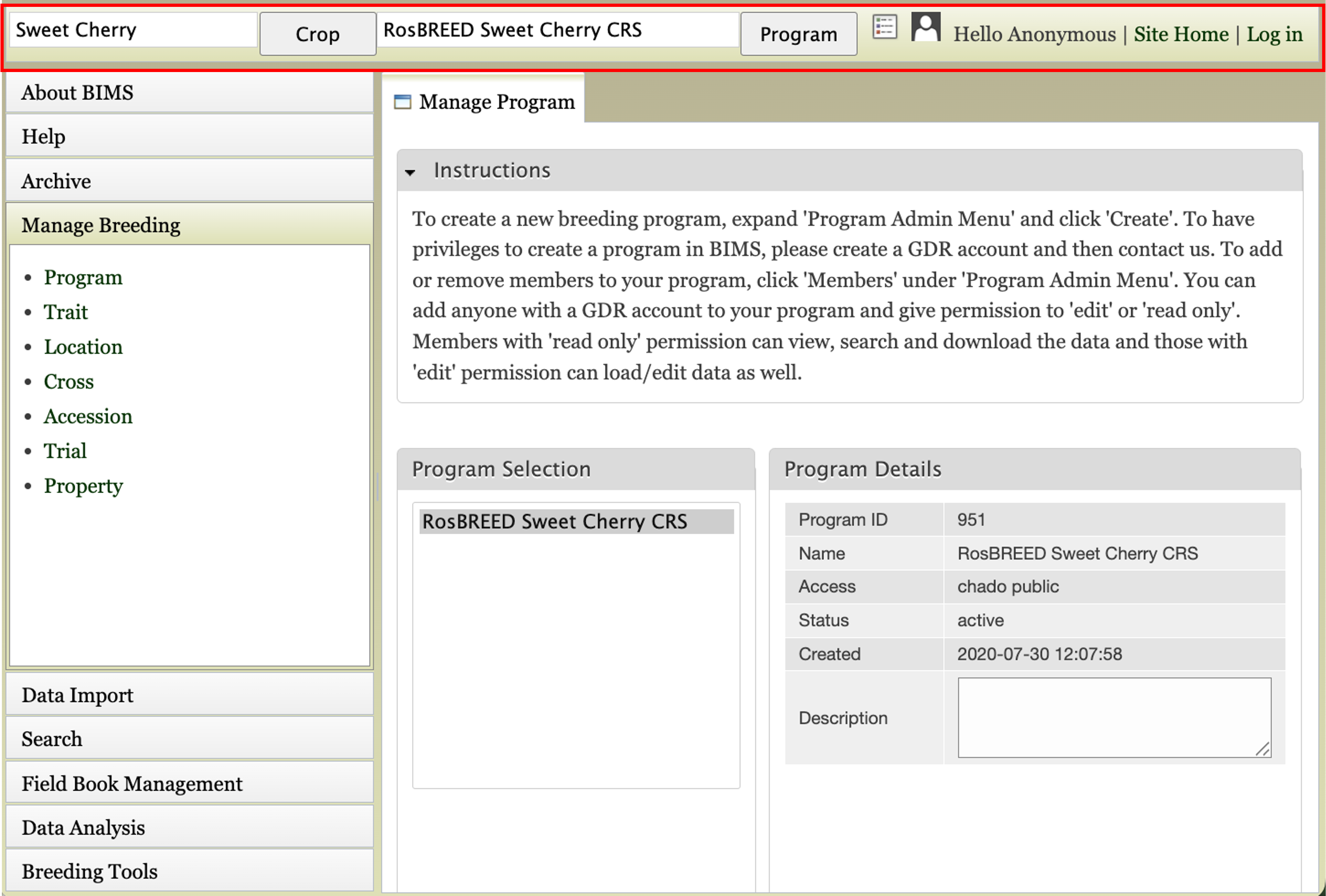

There are three main areas of the BIMS interface. This first part is the header region which displays the current crop and program, allows users to change the crop or program, has a link to the homepage of the community database (Site Home), and displays the user name.

_images/ViewingData3.png

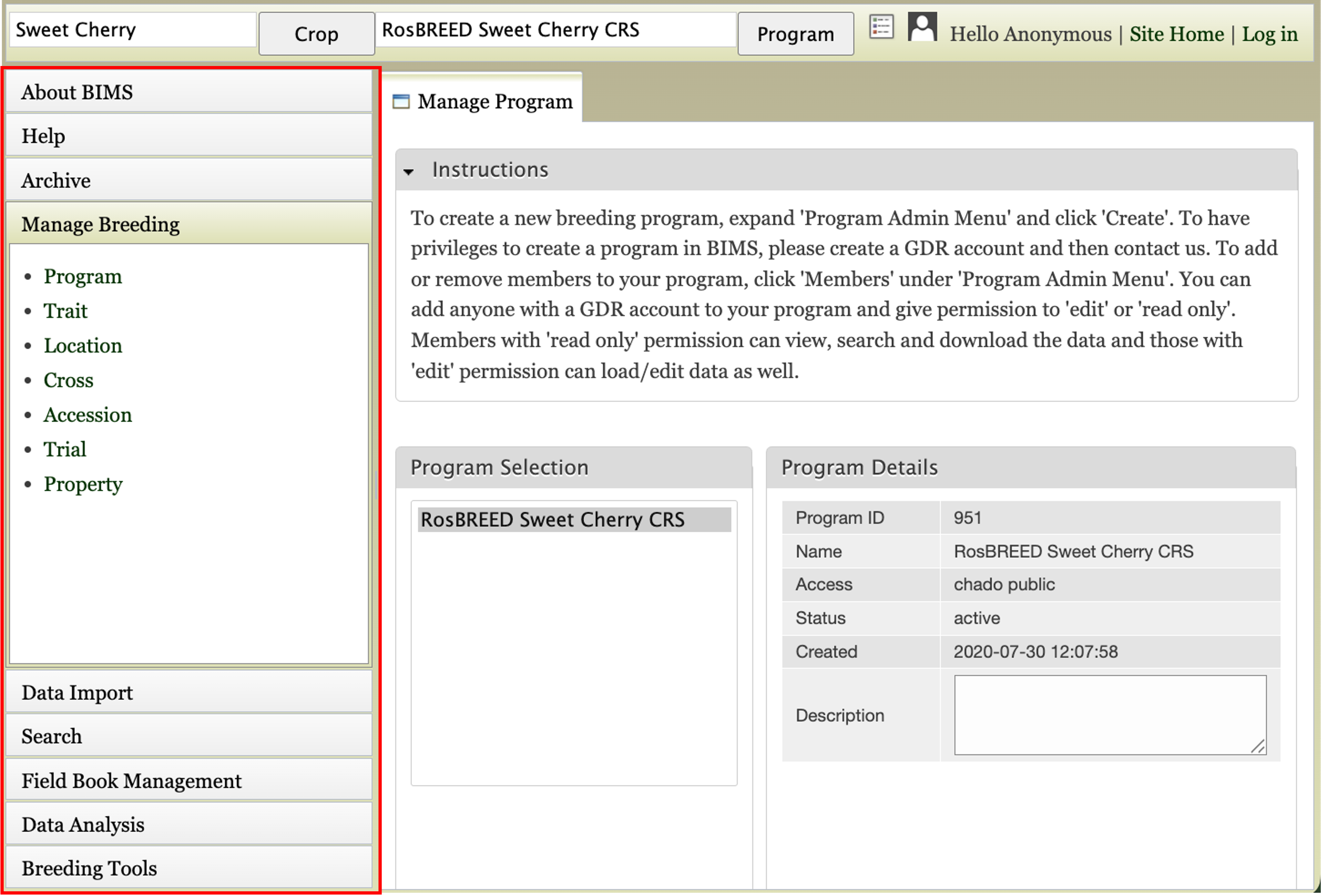

The second part of the interface is the accordion menu on the left side. This menu allows users to switch between different sections of the BIMS program.

_images/ViewingData4.png

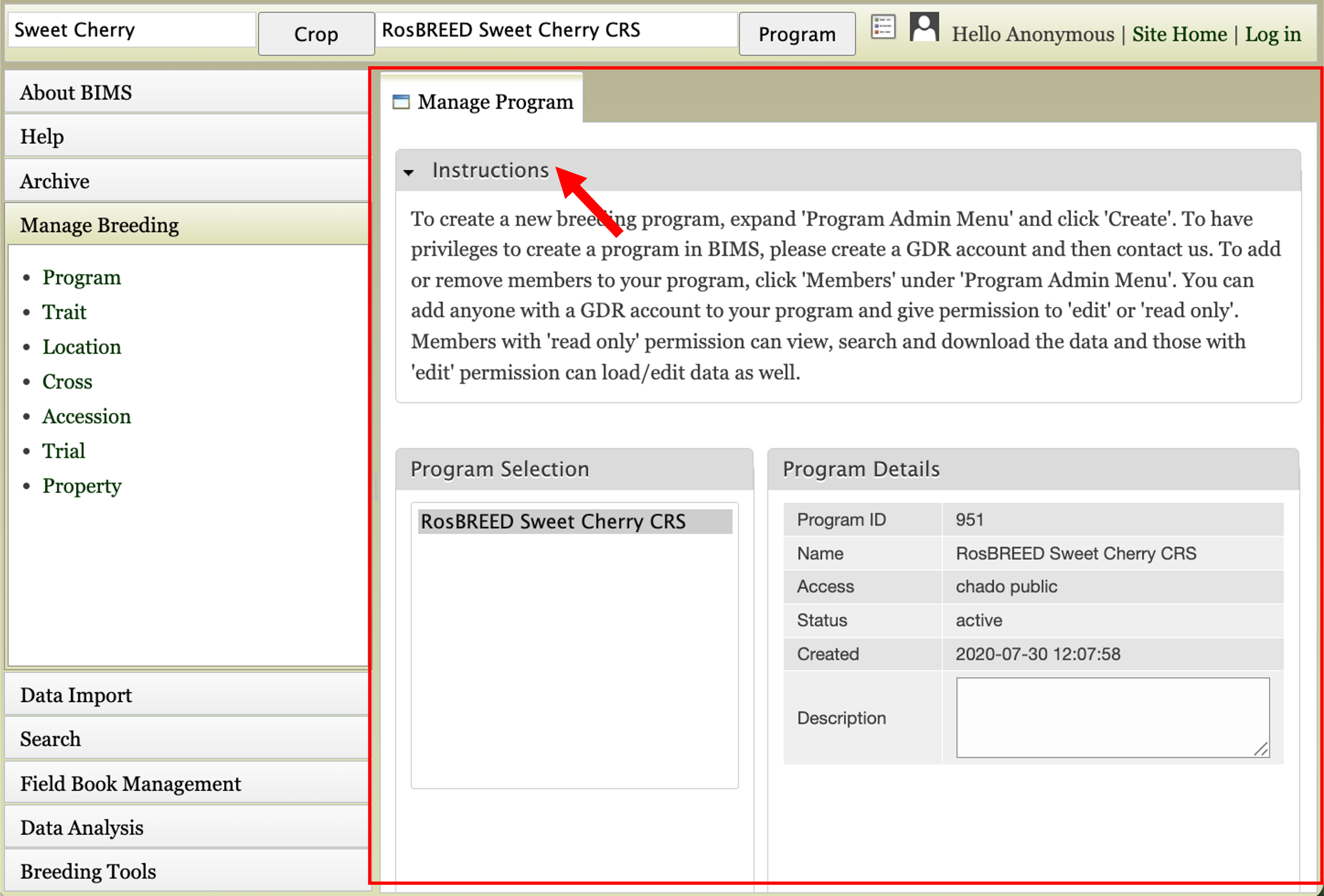

The last region is the tab region, where users primarily interact with BIMS. Each tab in BIMS has an “Instructions” section that can be expanded by clicking on it. The “Instructions” have information on how to use that tab.

_images/ViewingData5.png

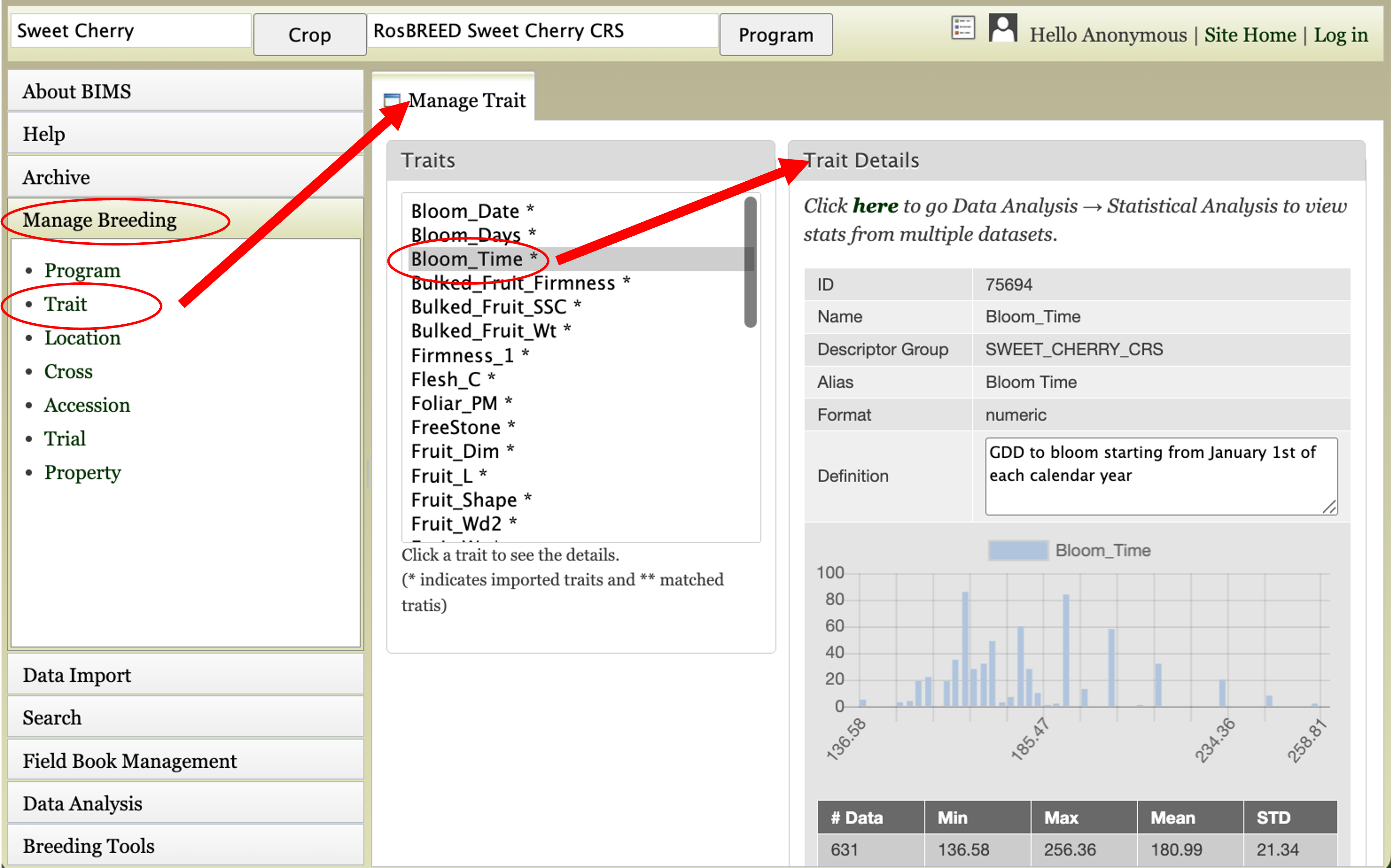

Once the crop and program have been loaded, you can explore the data that have been loaded into BIMS by clicking on the “Manage Breeding” section of the accordion menu. Under “Manage Breeding” there are links to view information about the Program, Trait, Location, Cross, Accession, and Trial. To view information about a certain trait, click on “Trait” and the “Manage Trait” tab will appear.  In that tab, click on the trait of interest. Once a trait is selected, the “Trait Details” will be displayed.

_images/ViewingData6.png

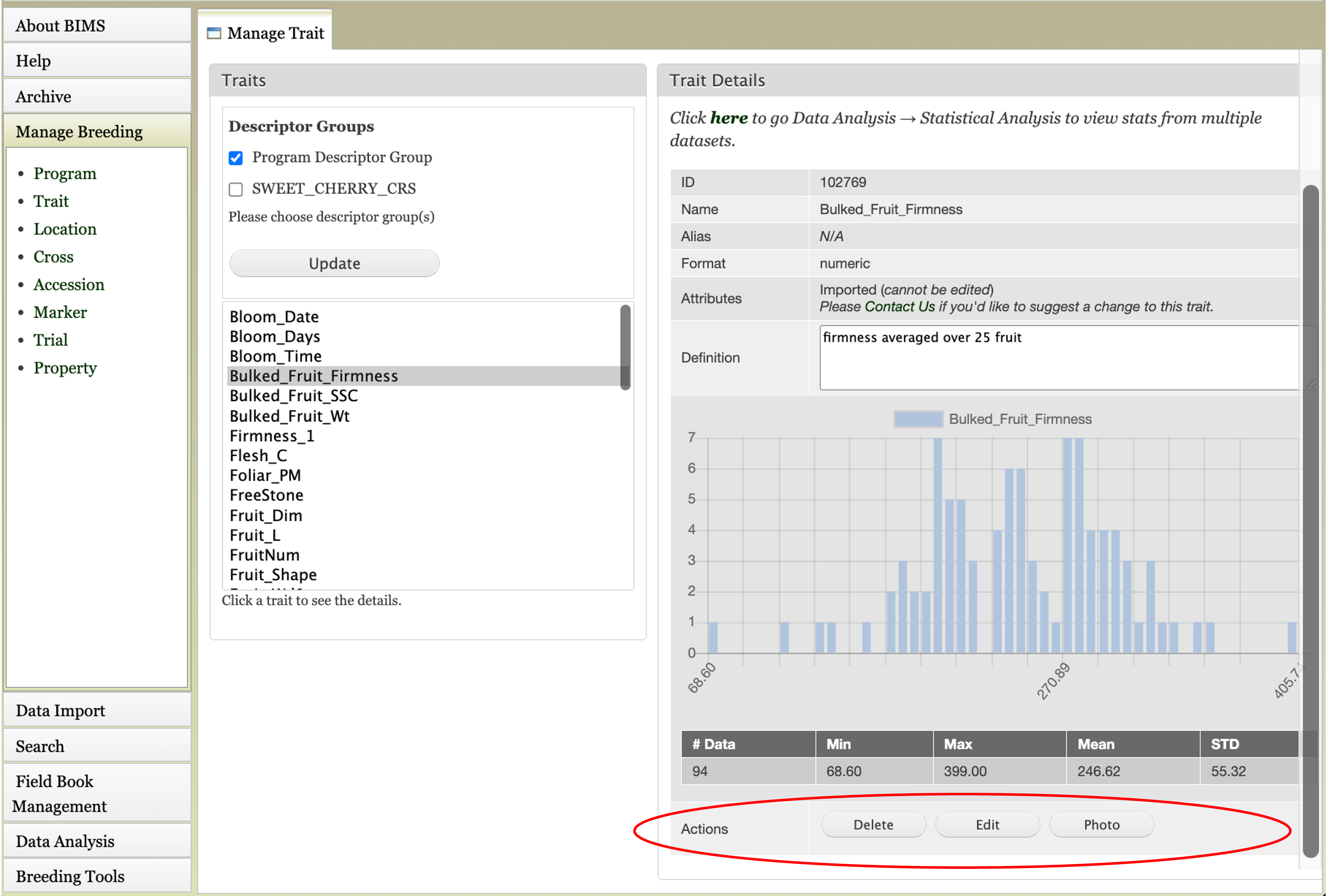

If you are viewing data from a private breeding program, you can also edit the information for all the items under “Manage Breeding”.  Breeders with private breeding programs will also see an “Actions” section on the details section for the trait, cross, etc.  The “Actions” section allows breeders to edit the properties or delete the item. Below is the description of what will be deleted by clicking the ‘Delete’ button in each section.

  • Trait page: all the trait values associated with the trait descriptor as well as the trait descriptor.

  • Location page: all the trait values associated with the location as well as the location name.

  • Cross page: the parent information for the progeny of the cross as well as the detailed data of the cross.

  • Accession page: all the trait values associated with the accession as well as the accession details.

  • Trial page: all the trait values associated with the trial as well as the trial name.

_images/ViewingData7.png

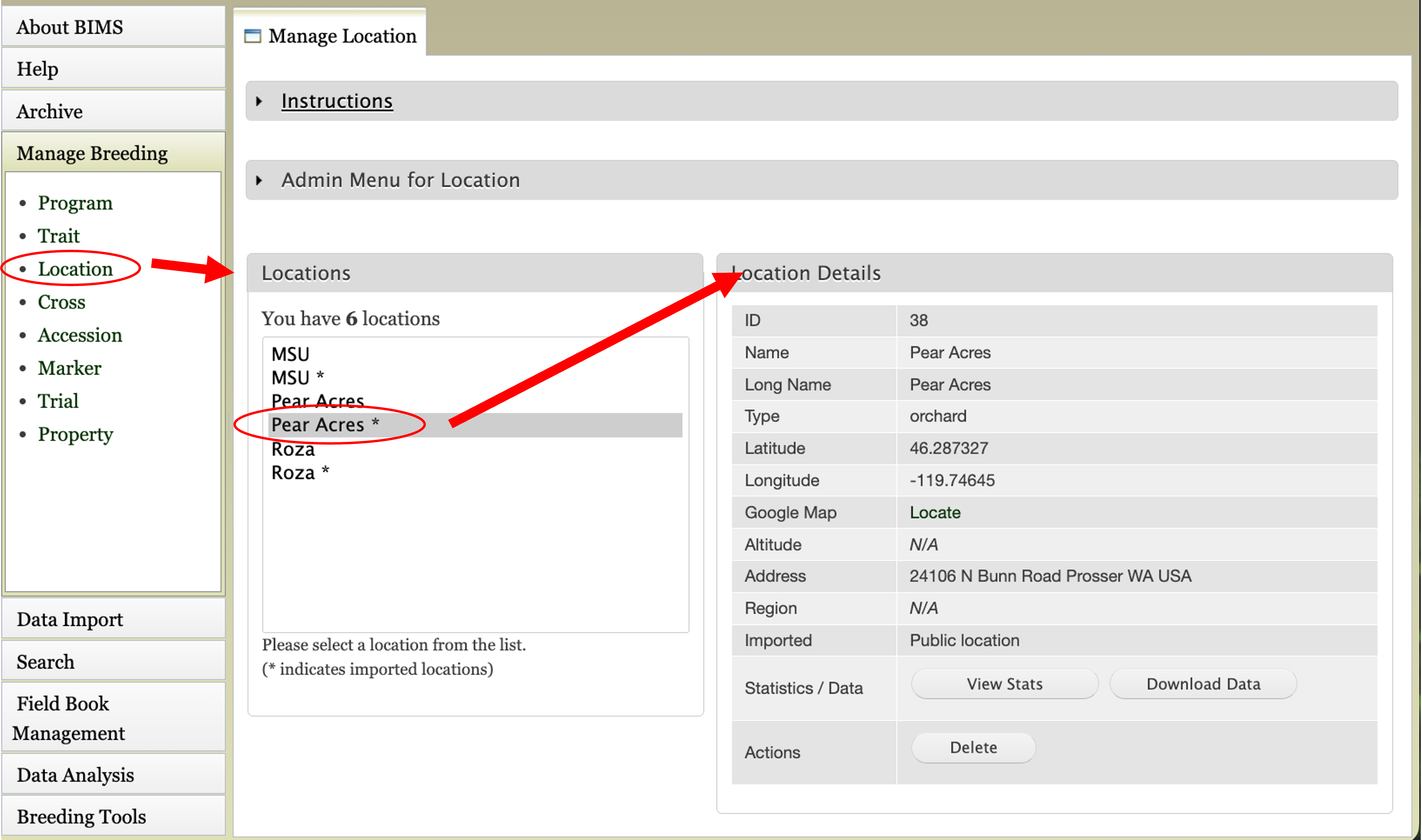

You can also view information about the other data types under “Manage Breeding” by clicking on each type. For “Location”, information about each location can be displayed. First select “Location”, then choose the location name, and then the details will appear.

_images/ViewingData8.png

For the “Cross”, “Accession”, and “Trial” data types, the data details are accessed the same way. First select the data type under “Mange Breeding”, then select one of the names, and then the details will appear. For these data types, in the “Details” section there is also a “View Stats” button that opens another tab that displays further statistics/data.

_images/ViewingData9.png
